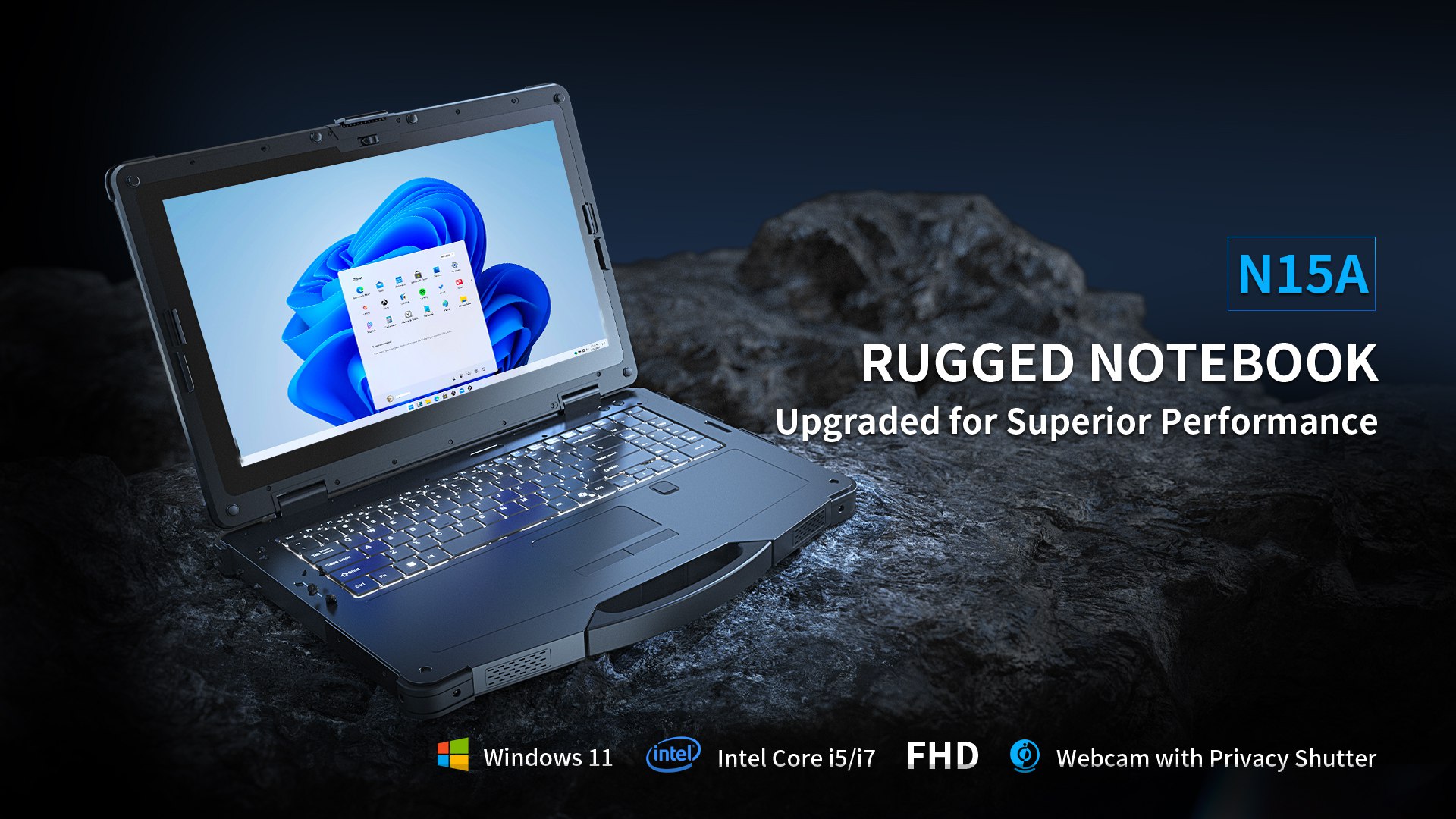

The N15A is powered by the 12th Gen Intel® Core™ i5/i7 processors and runs on the Windows 11/10 operating systems. It comes with a 15.6-inch high-resolution and high-brightness full lamination display, and a backlit keyboard for convenient interaction even in low-light conditions. It supports M.2 interface options for 5G/4G connectivity, along with WiFi 6 and BT5.1 for efficient data transfer. With a plethora of ports and docking station expansion capabilities, it is suitable for the needs of various industries. It features dual-battery endurance with a 56Wh + 14.4Wh setup, allowing hot-swapping of the larger battery. Boasting an IP65 ingress protection rating, it has also undergone rigorous testing in accordance with the MIL-STD-810H US military standard.
Intel i5-1235U(Optional: i7-1255U)
Intel® Iris® Xe Graphics eligible
Supports M.2 interface 5G/4G selection, high speed WIFI 6,BT5.1

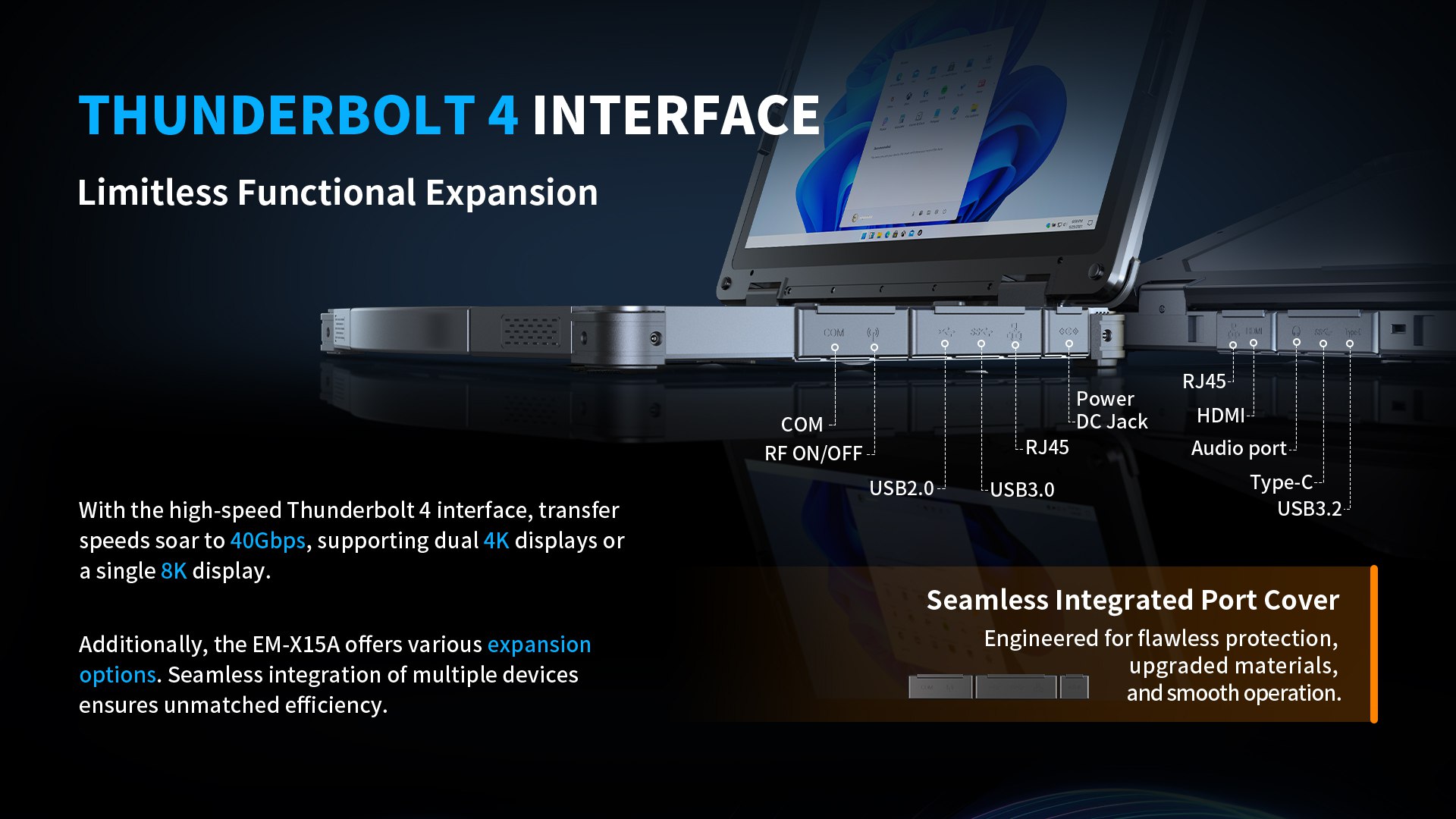

High-speed Thunderbolt 4 interface HDMI 2.0, USB, RJ45, RS232,etc. Seamless integration of multiple devices
56Wh + 14.4Wh dual battery Large battery is removable Switchable Modes for Versatility
he 15-inch fully laminated display Supports optional 10-point touch and glove touch IP65 & MIL-STD-810H Certified

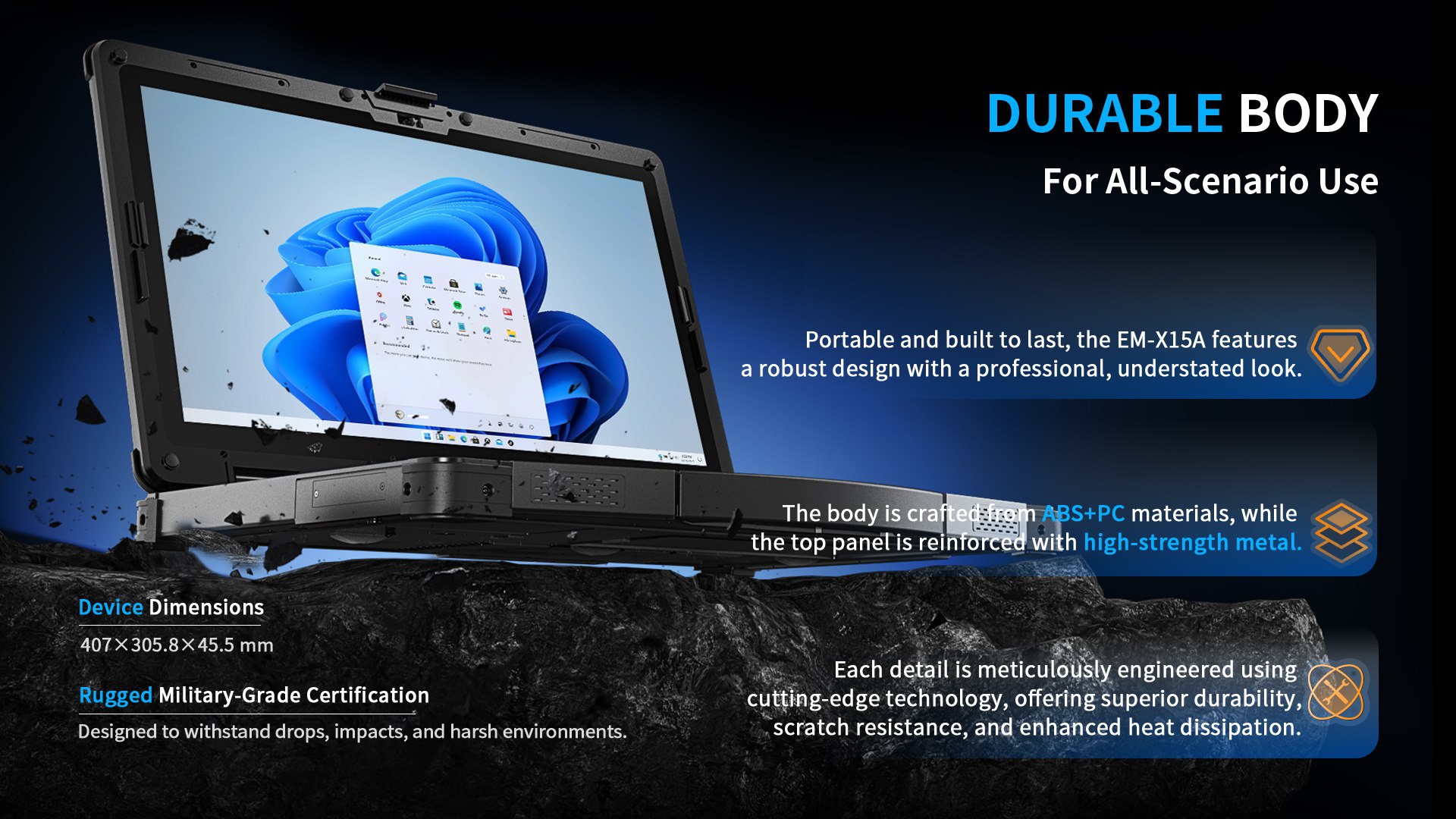

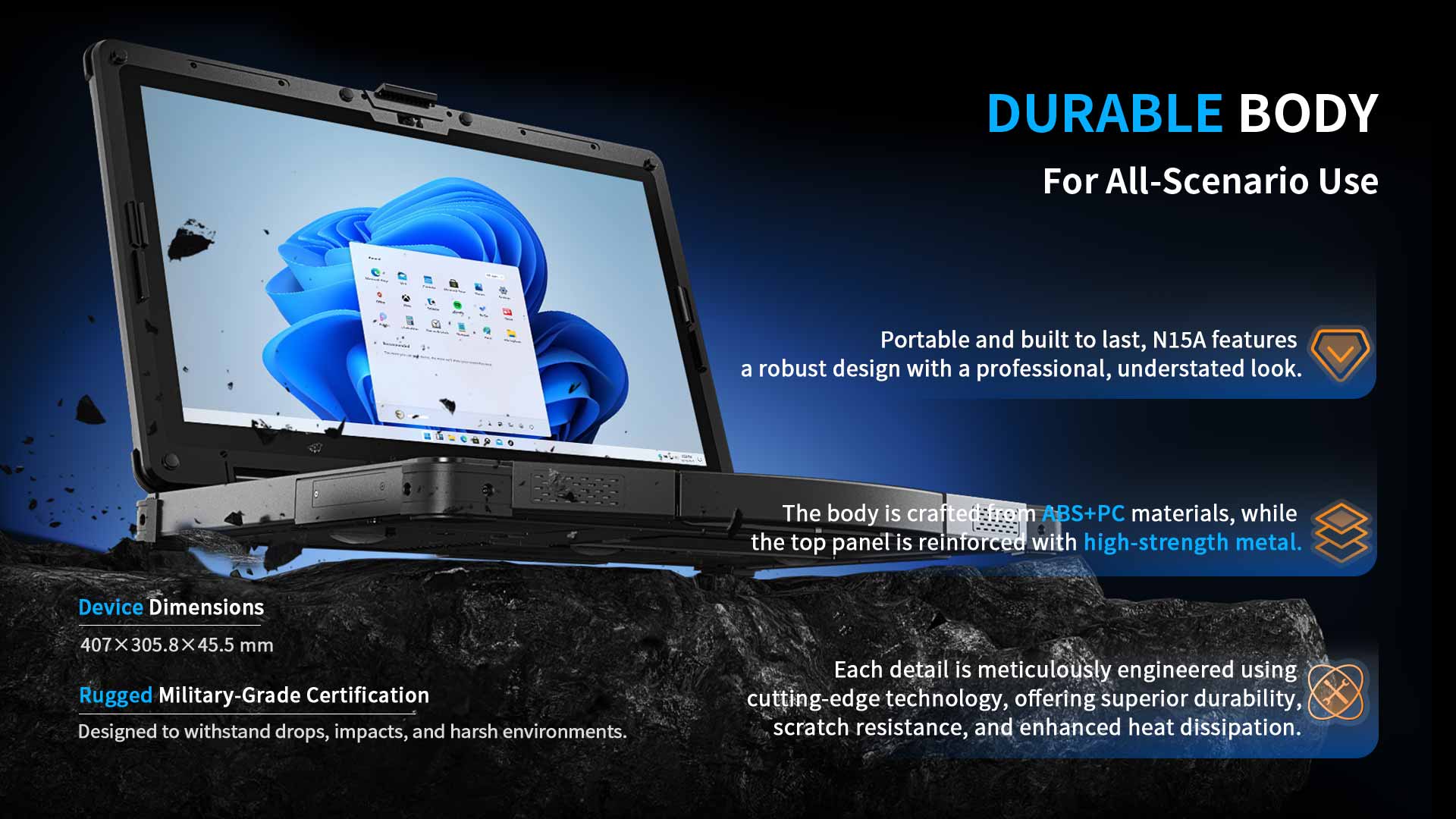

407*305.8*45.5mm
TBD
Black
Type: FHD
Resolution: 1920*1080
Brightness: 1000cd/㎡
Size: 15-inch 16:9
Optional 10-Point Capacitive Screen, G+G, Corning Gorilla Glass; Hardness above 7H; Scratch-resistant; Supports glove touch
USB3.2 *1, USB3.0 *1, USB2.0 *1
TYPE-C,Supports Thunderbolt 4
∮3.5mm Standard Earphone Jack *1
RJ45 *2 (10M/100M/1000M adaptive)
RJ45*1 10M/100M/1000M adaptive, Supports Gigabit Protocol
RS232 *1
12PIN Pogo Pin
Anti-theft Lock Slot *1
Right-side Cooling Vent *1
DC19V/3.78A ∮5.5mm power interface *1
Optional

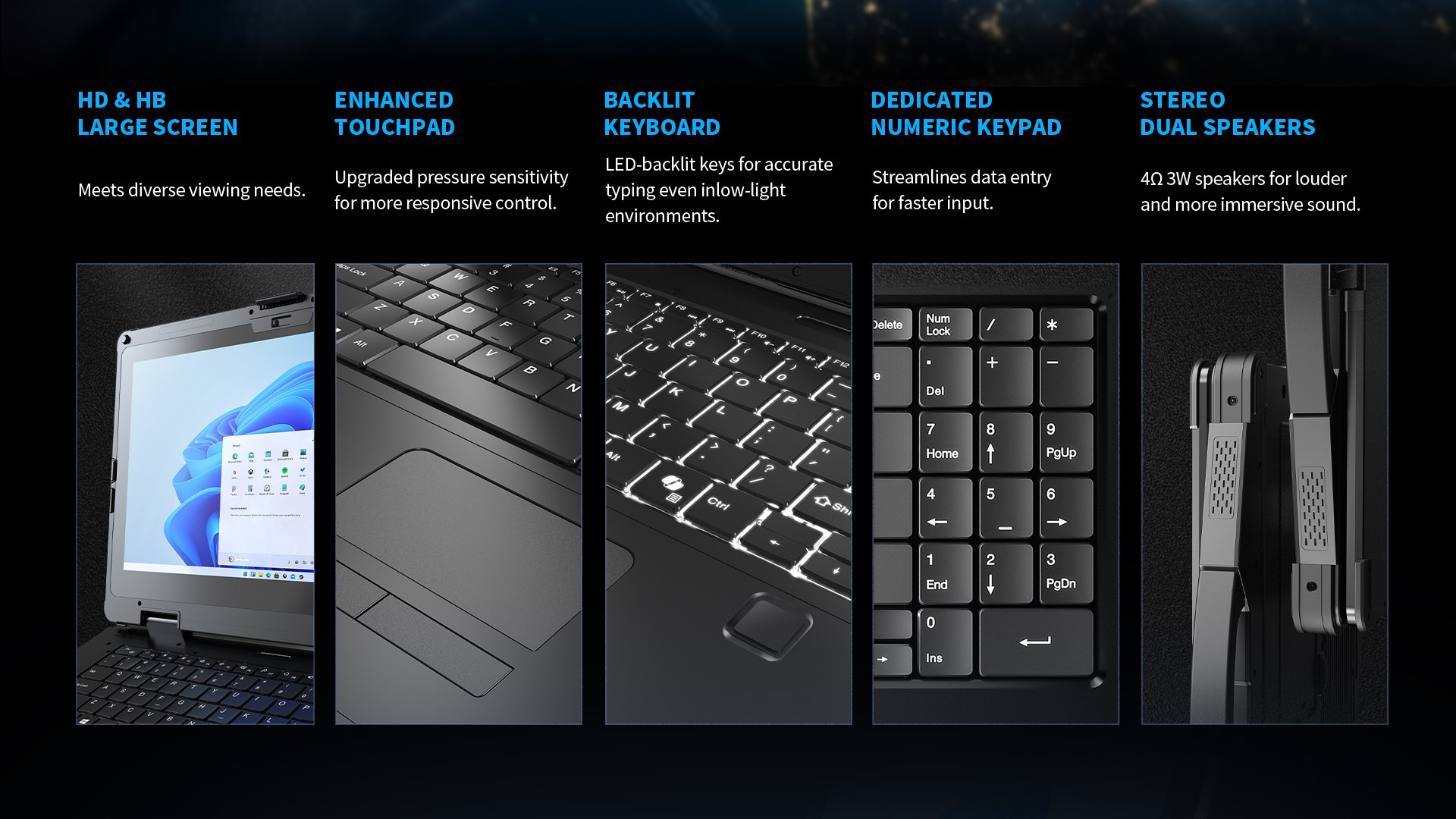

US Layout Keyboard with Backlight
Intel® Core™
Windows 11 PRO
RAM:16GB (Optional: 32GB DDR5)
ROM:256GB SSD
DC input 100-240VAC0.5A50/60Hz DC19V/3.78A 71.82W American Standard Optional: European Standard
Front 5.0MP
1300mah/11.1V (14.4WH)
4850mah/11.55V(56WH)
Built in, ×1 SPI Fingerprint (Power-On Login)
WIFI6
2G/3G/4G
5G Optional M.2
BT5.1
Supports single GPS or single Glonass, default GPS

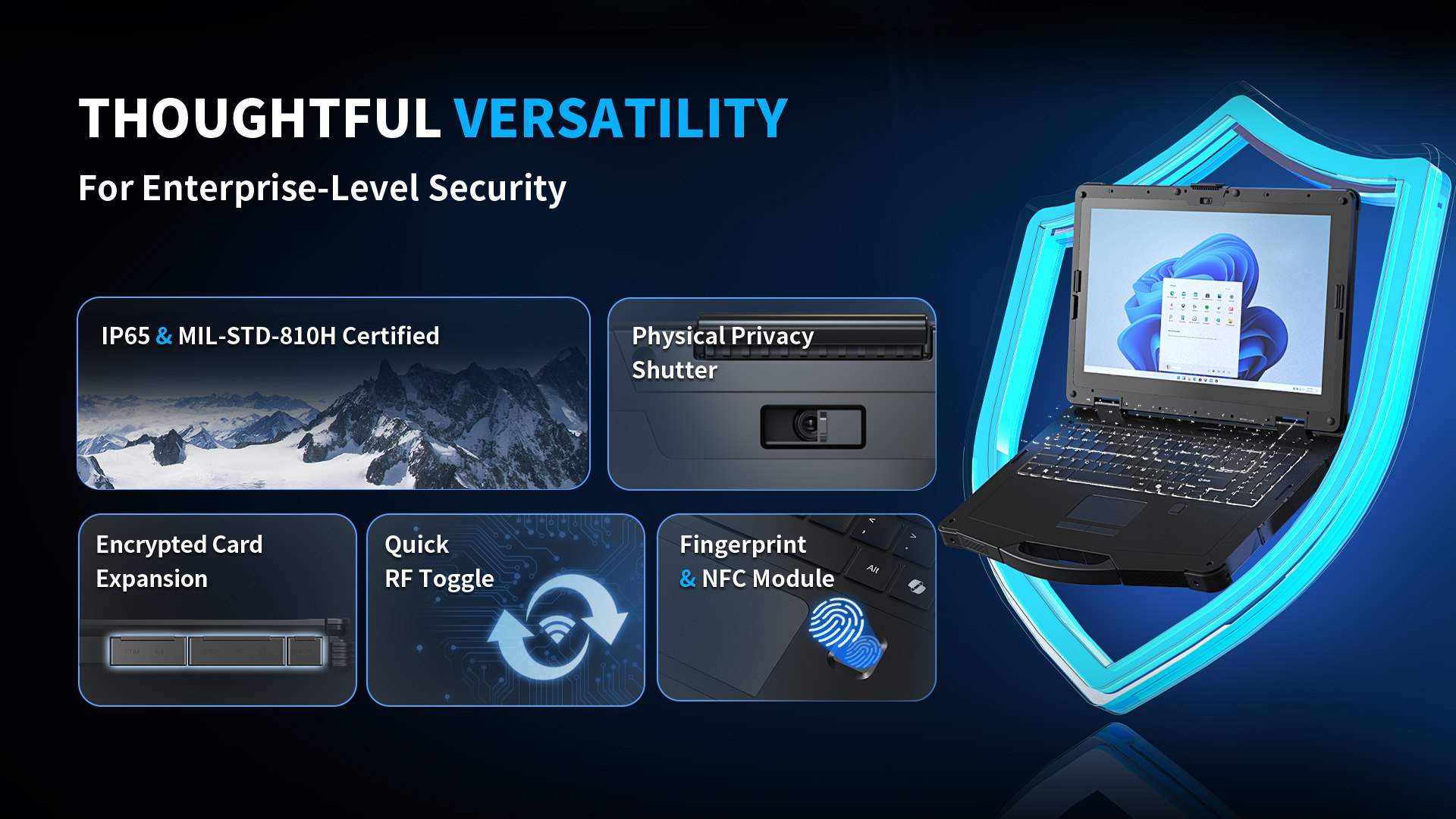

IP65
CE, UN3803, Optional FCC, CCC
MIL-STD-810H
MIL-STD-810H: 1.22m drop resistance
Working temperature: -20 °C to 60 °C
Storage temperature: -30 °C to 70 °C
Humidity: 95% Non-Condensing
DC19V/3.78A adapter
Removable Battery
MDC14 Battery Quad-charging Dock
