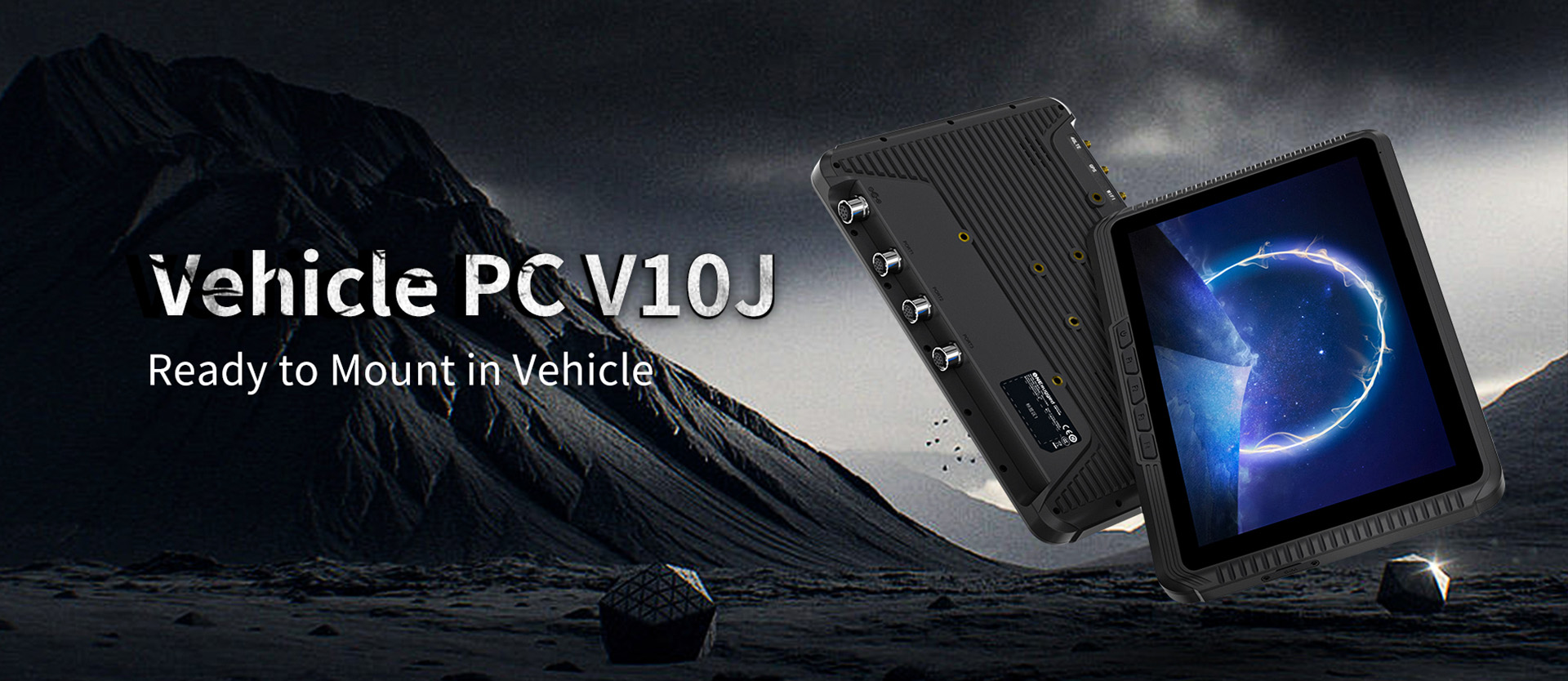

V10J is a 10.1-inch vehicle pc, which is specially designed for in-vehicle applications. Equipped with Intel® 11th Gen Celeron® N5100 processor, it is more powerful, and its integrated Wi-Fi-5, 4G LTE and GPS functions support available vehicle mushroom antennas, the coverage area is larger and the signal reception is better. Moreover, it has passed the dustproof, waterproof, anti-vibration and wide temperature tests, and with the M12 aviation plugs, wide voltage module, VESA and RAM mounting methods, etc., it can keep stable at all times and can meet all vehicle types, like forklifts, cranes, trucks.

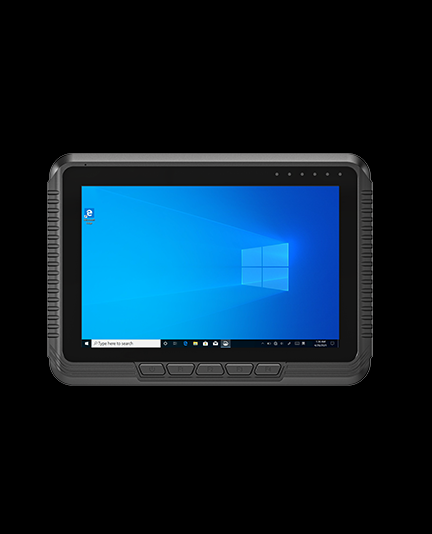

Equipped with Quad-core Intel JASPER LAKE N5100 processor and running Windows 11 OS, up to 8GB+128GB high-speed capacity

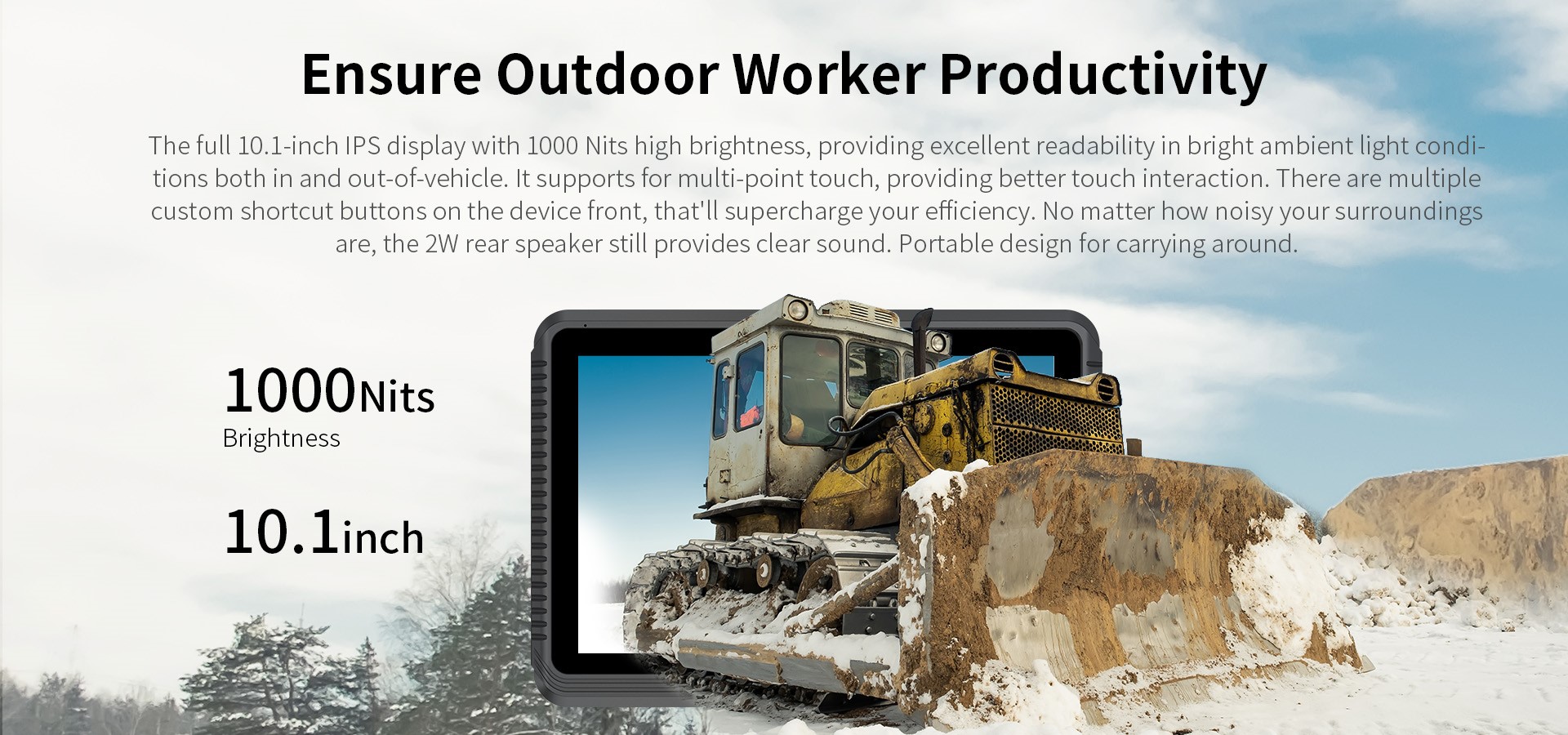

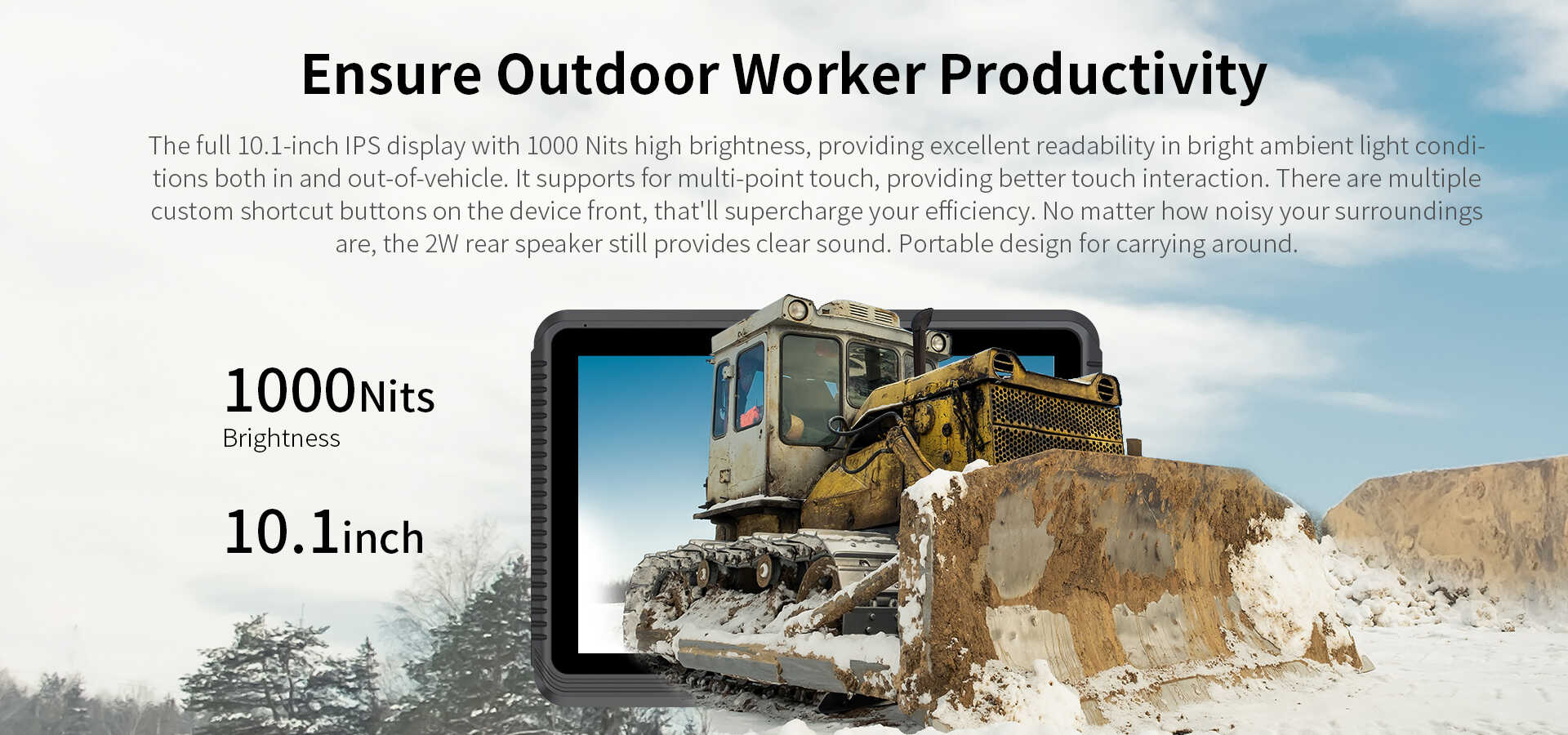

10.1-inch screen, 1000cd/m² high brightness display, multiple-point touch panel and customized keys , ensuring outdoor worker visibility

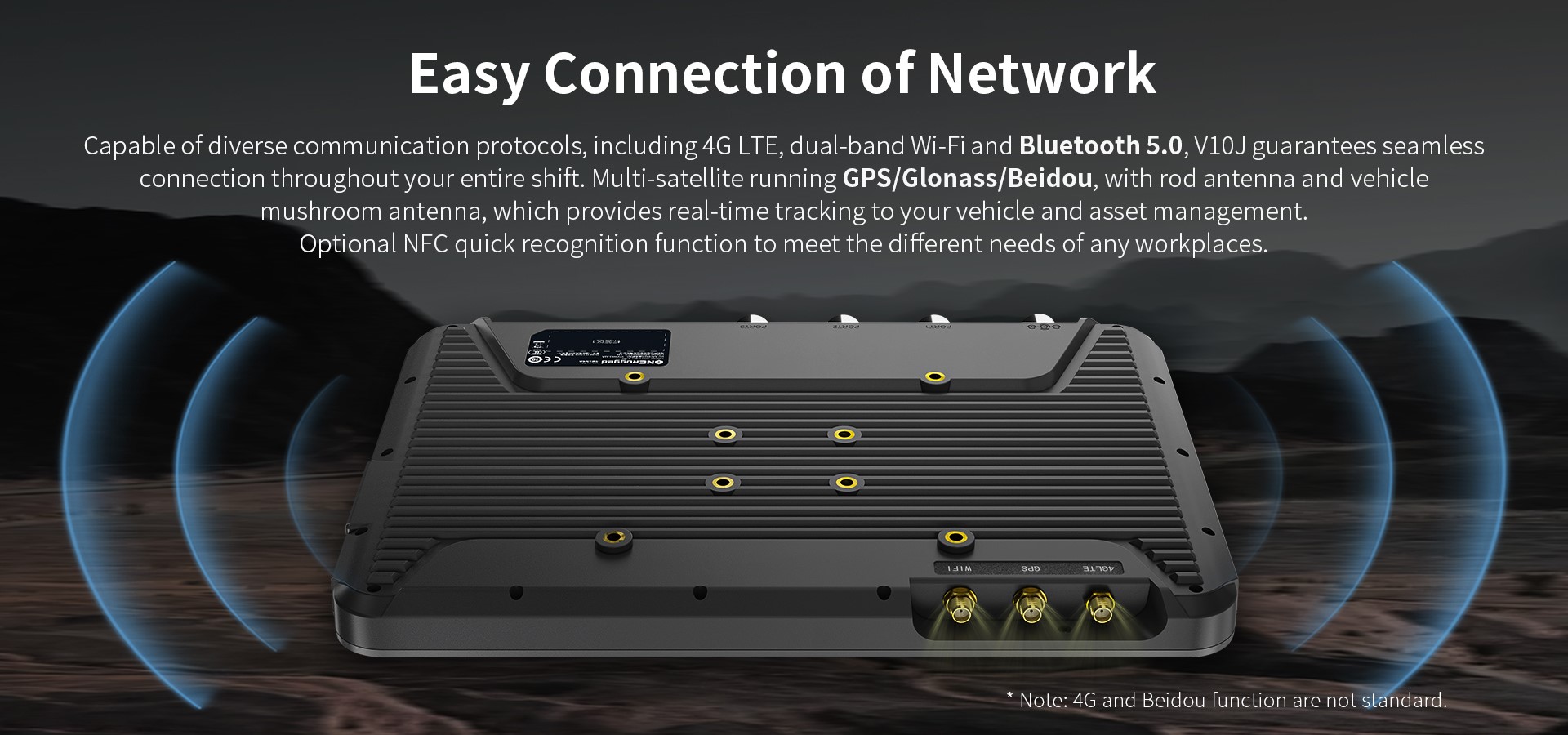

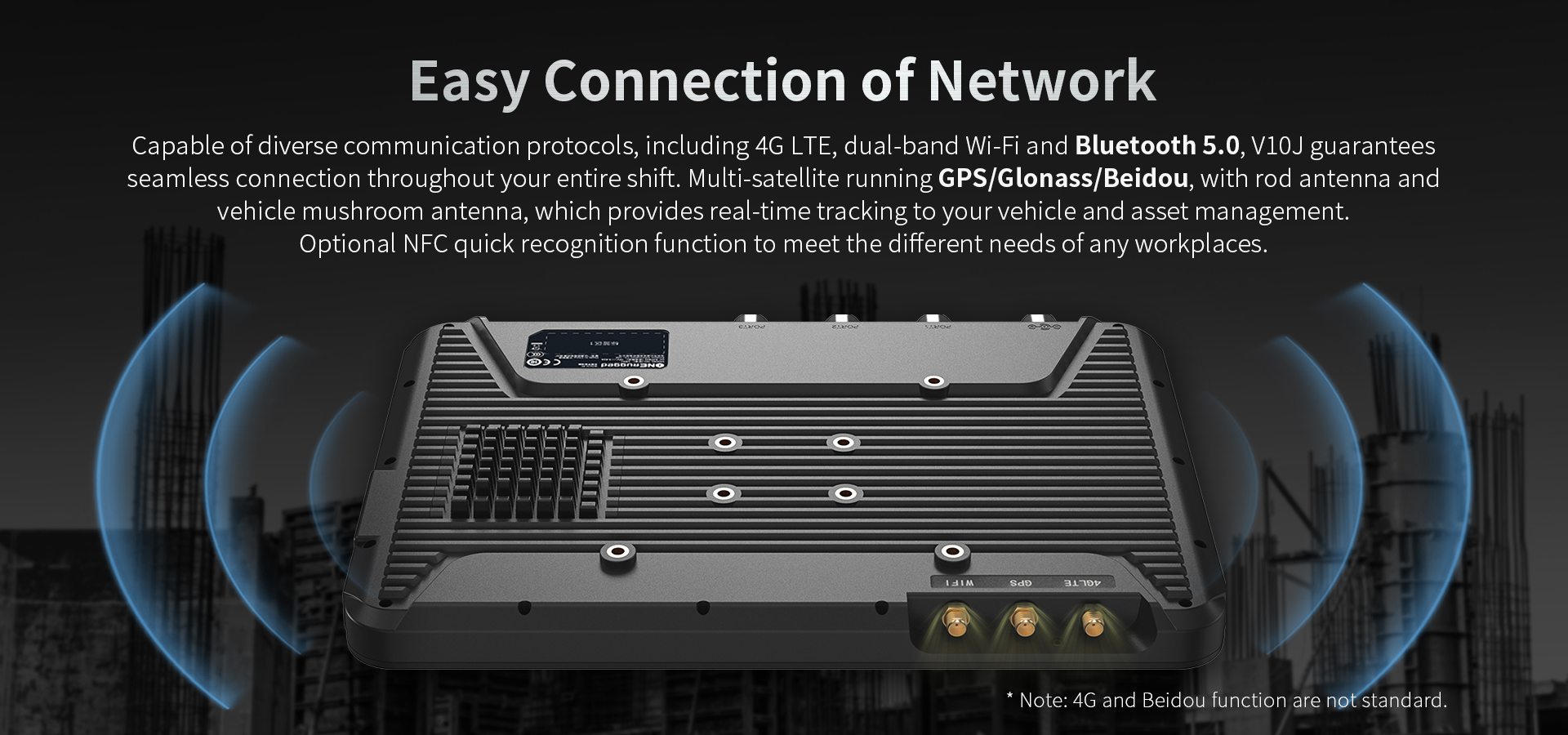

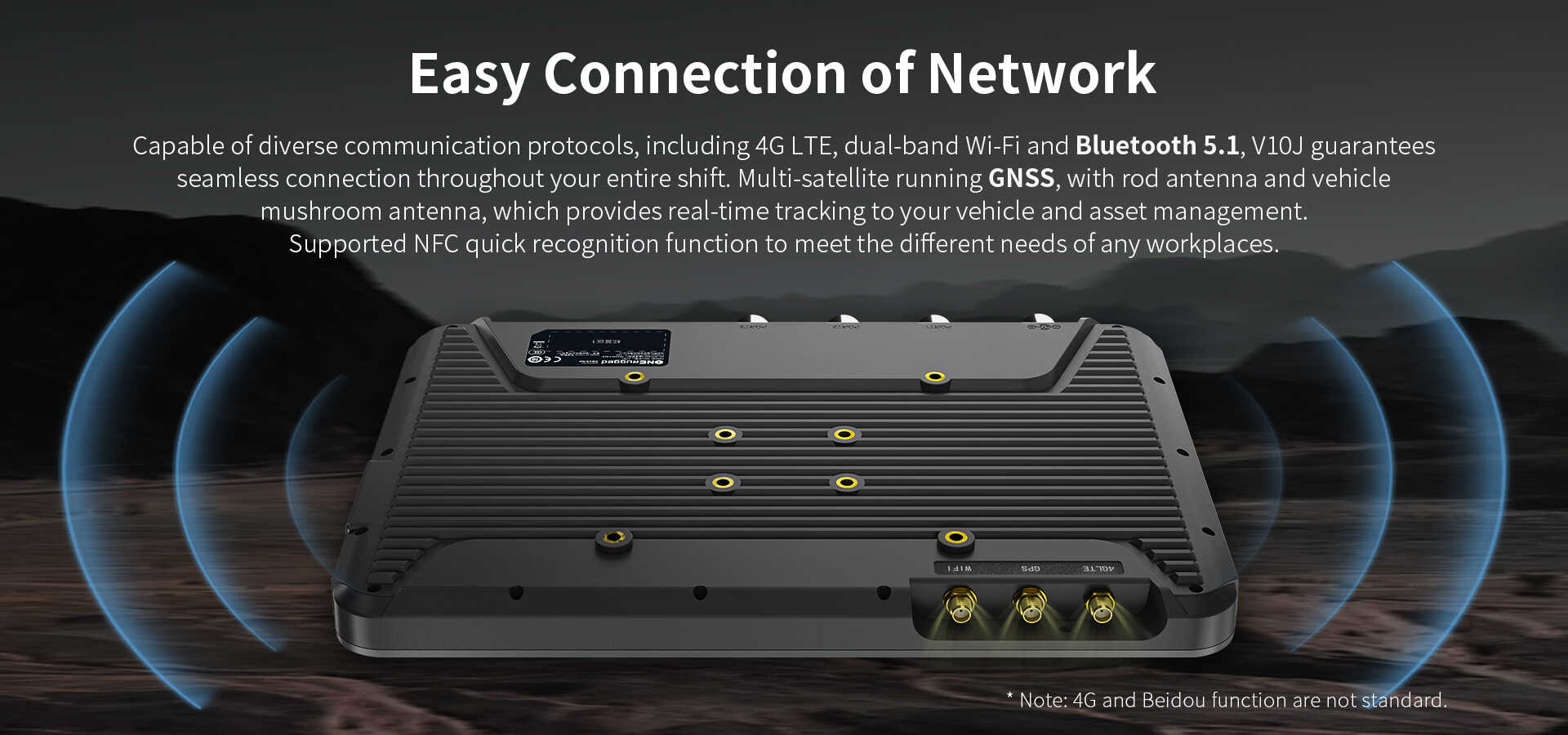

4G LTE, dual-band Wi-Fi, Bluetooth 5.0 and GPS/Glonass/Beidou functions, with available vehicle mushroom antenna

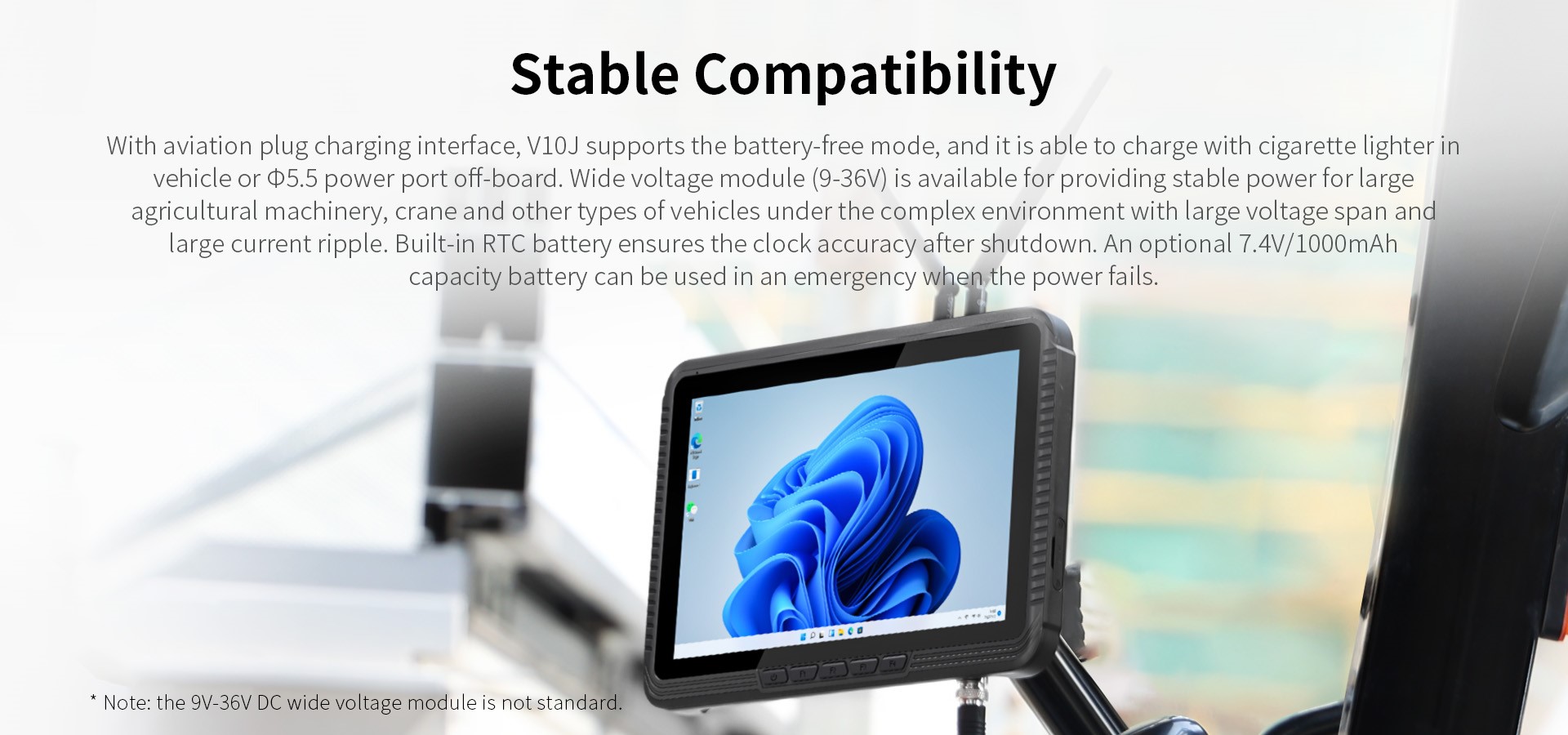

Aviation plug charging interface, switchable for cigarette lighter interface or Φ5.5 power port, and a 12V4A DC wide voltage module is optional
Supports the battery-free mode, another optional 7.4V/1000mAh capacity battery

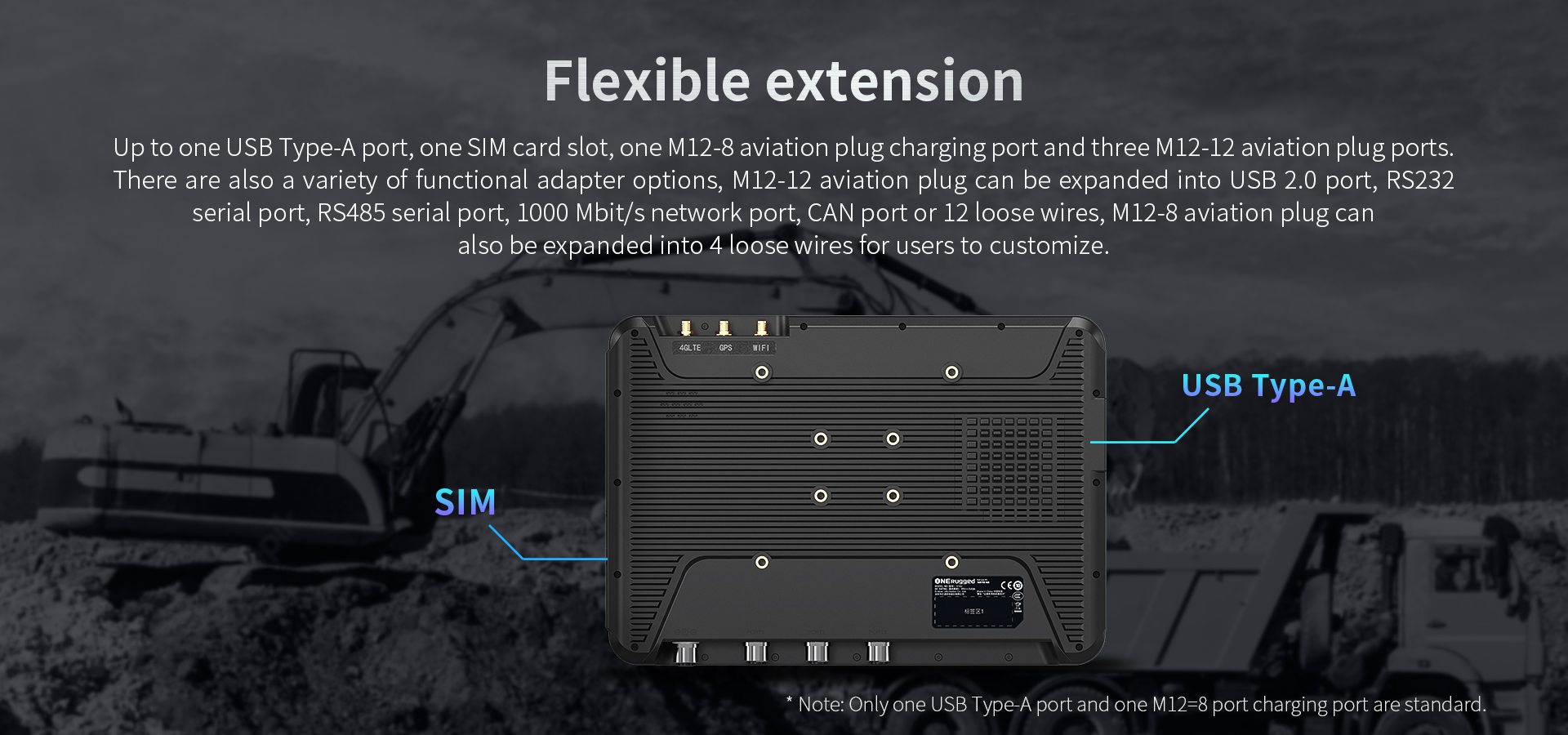

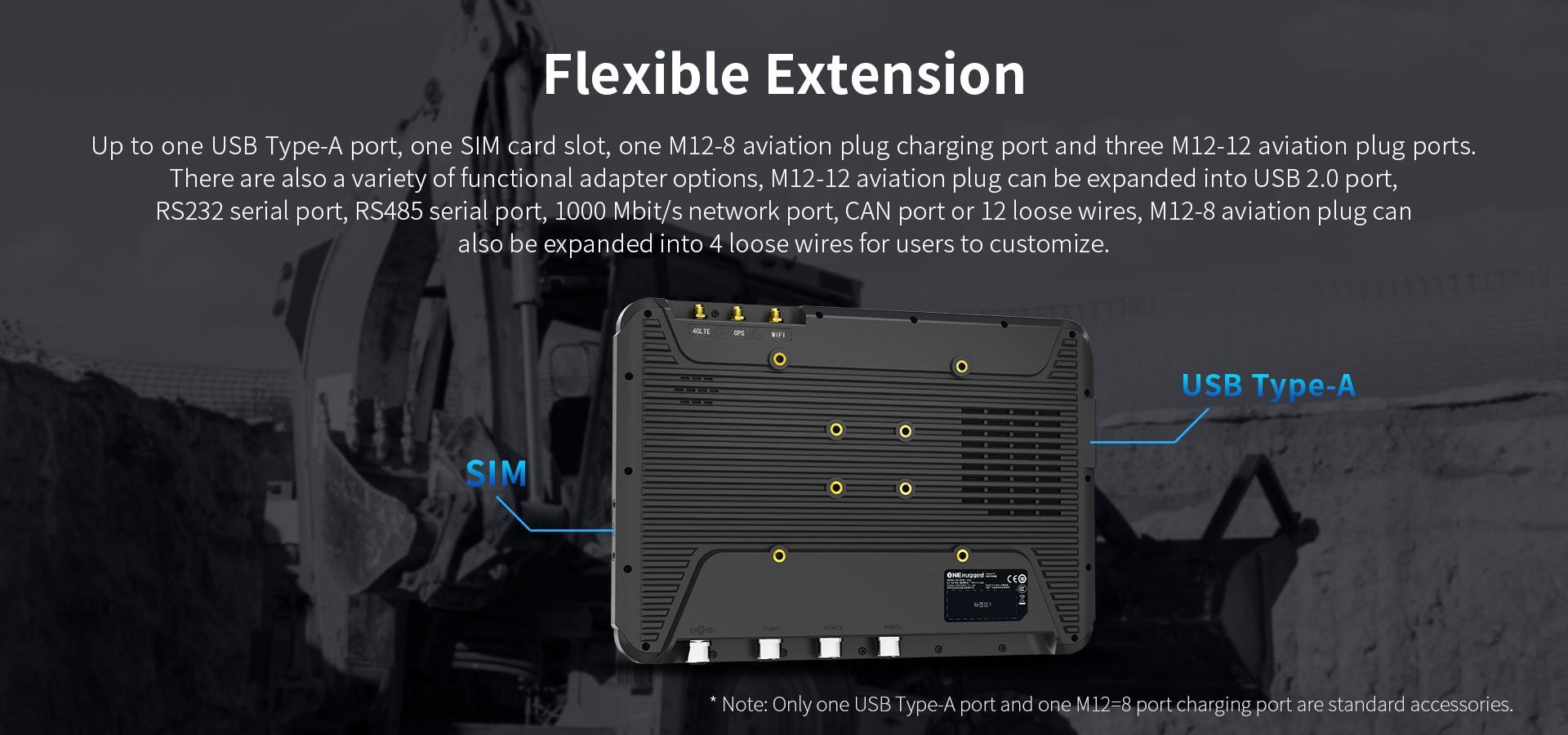

Available multiple aviation plug interfaces, and also supports USB/DB9/LAN/CAN and other interface extensions

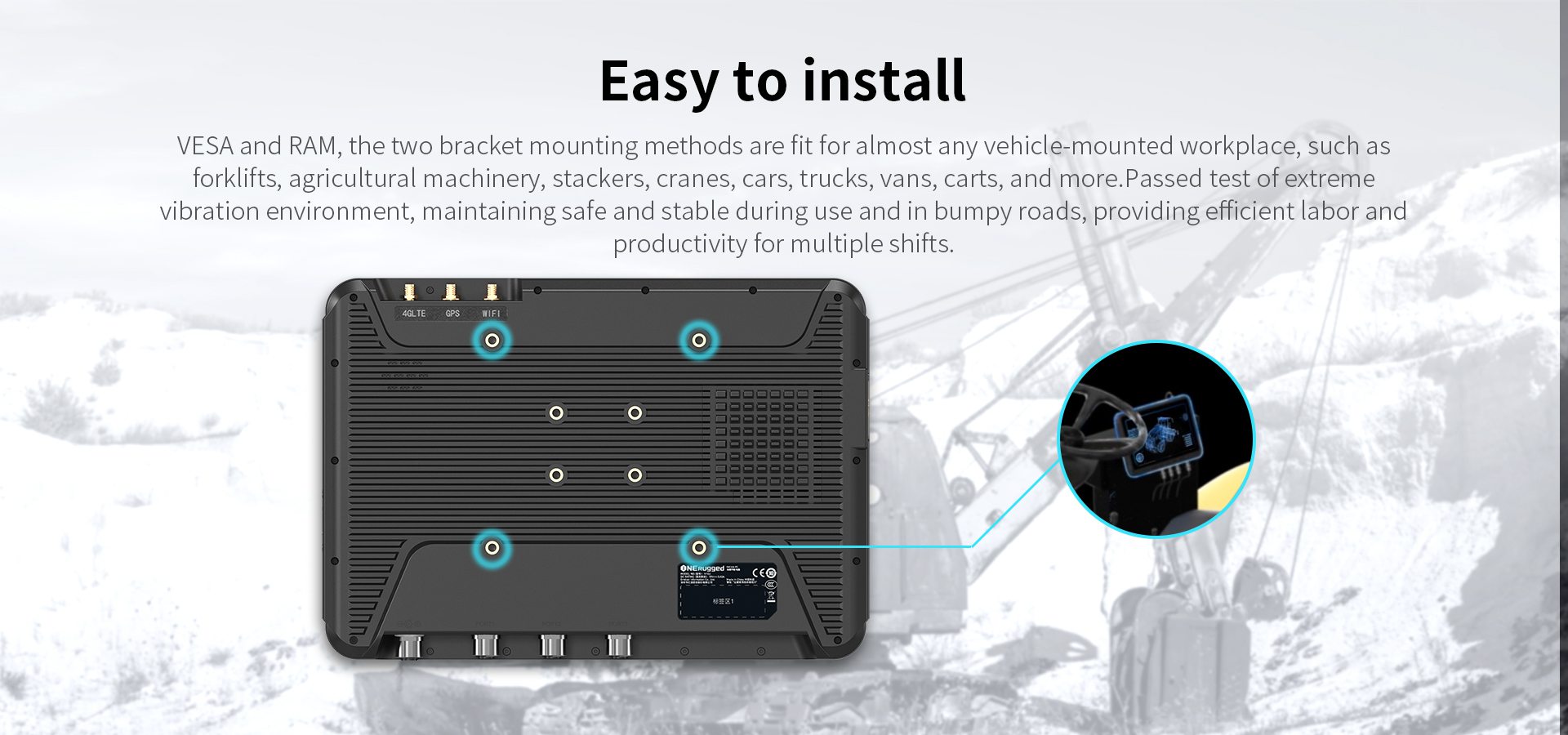

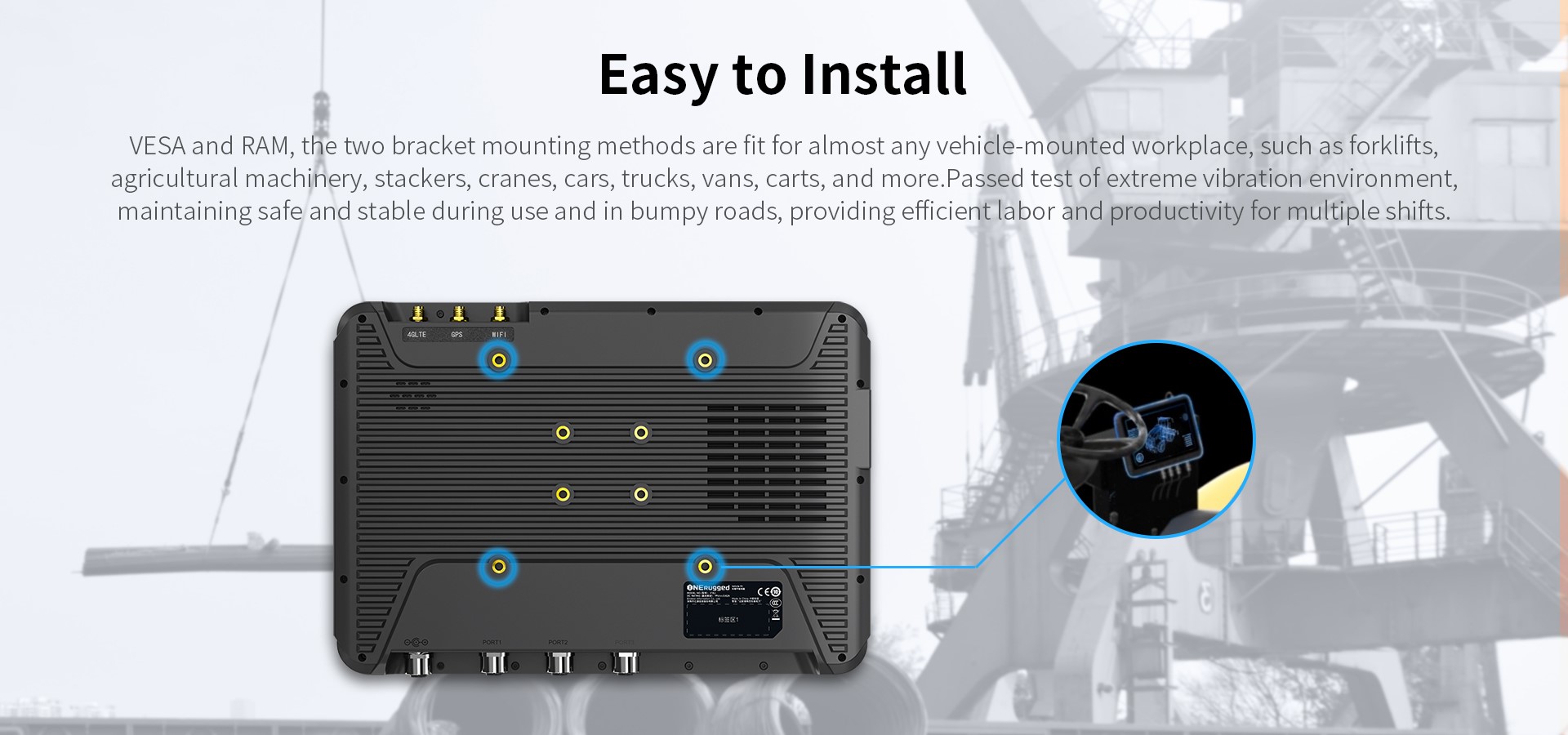

Two bracket mounting methods, VESA and RAM are suitable for almost any vehicle-mounted workplaces

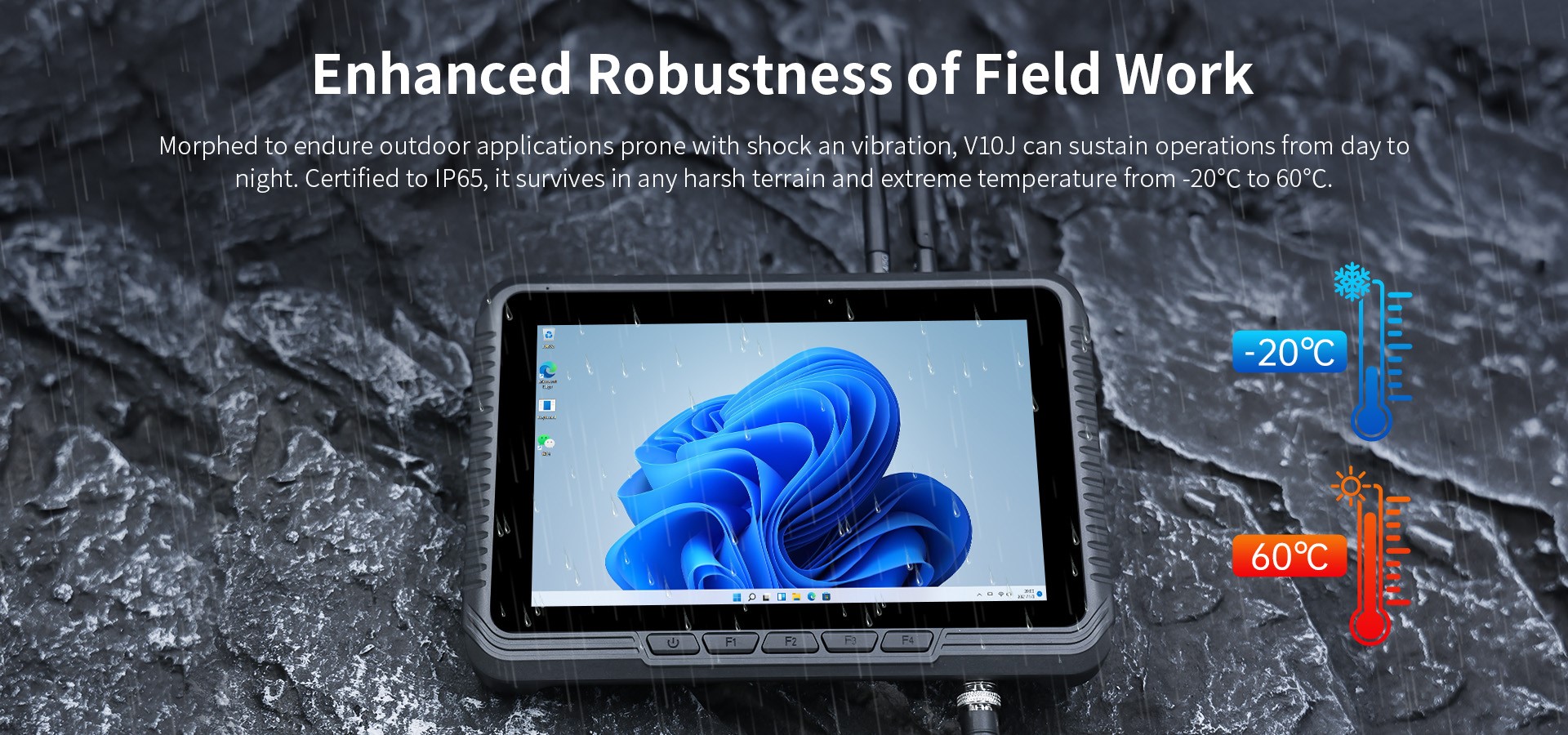

IP65 dustproof and waterproof, morphed to endure outdoor applications prone with shock, vibration and extreme temperature
WIFI rod antenna
GPS rod antenna
Power adapter cable (M12-8 power port to φ5.5 power port, suitable for cigarette lighter)
4G rod antenna
Cigarette lighter adapter
φ5.5 power adapter
Power adapter cable (M12-8 power port to 4 loose wires)
9V-36V wide voltage module
VESA standard
RAM standard
PORT3 (M12-12) (optional) USB 2.0 *2+USB 2.0 (Default) / CAN*1
Function adapter cable (M12-12 aviation port to RS232 *1 + RS485 *1)
Function adapter cable (M12-12 aviation port to RS232 *2)
Function adapter cable (M12-12 aviation port to 1000M RJ45 *1)
Function adapter cable (M12-12 aviation port to 12 loose wires)
GPS vehicle mushroom antenna
