N14A - 14 inch rugged notebook Intel® Core™ processor

N14A

Overview

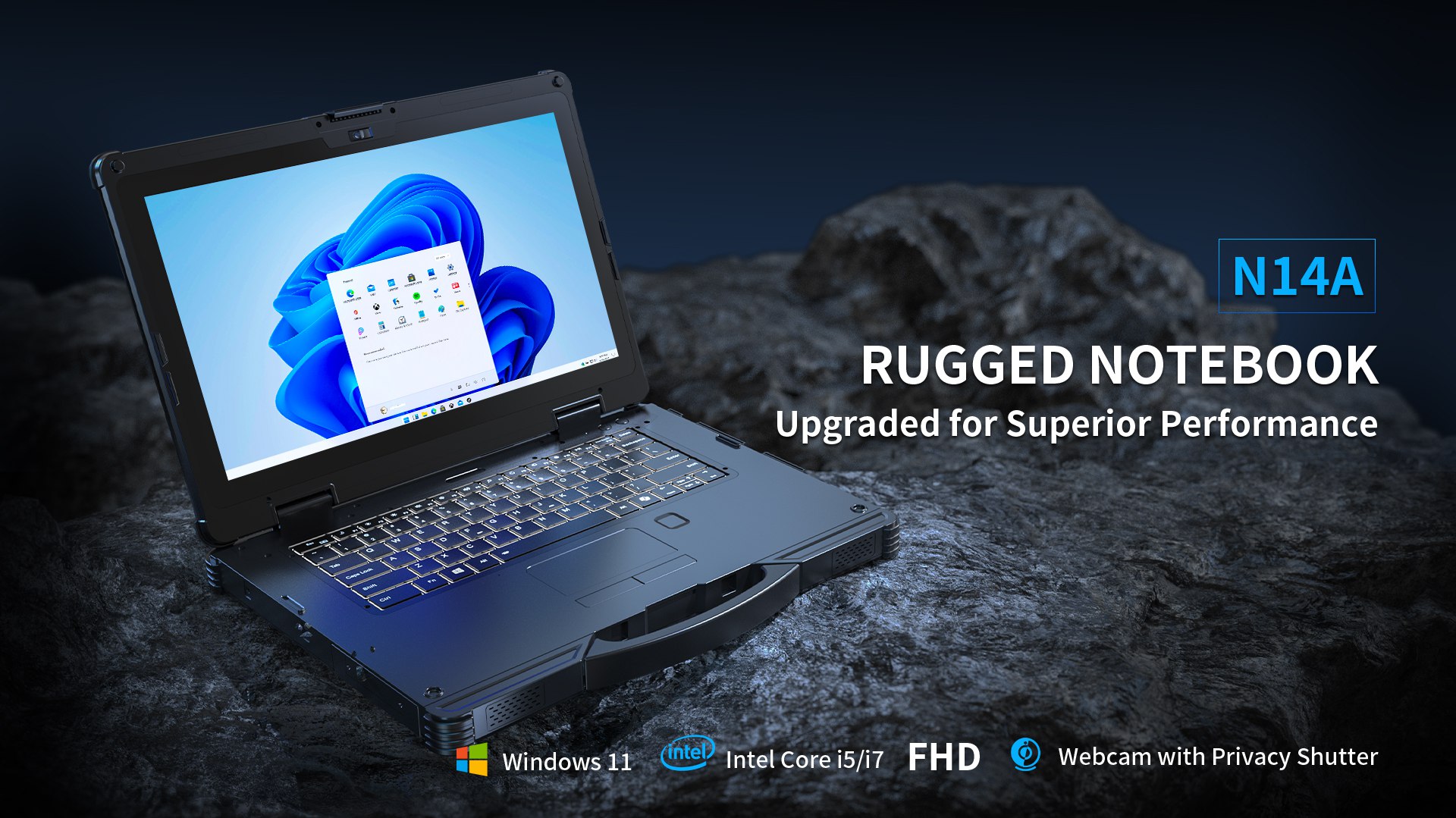

Rugged Notebook

The N14A features the 12th Gen Intel® Core™ i5/i7 processors and runs on Windows 11/10 operating systems. It boasts a 14-inch high-resolution and high-brightness full-lamination display, along with a backlit keyboard for convenient interaction even in darkness. It supports M.2 interface options for 5G/4G connectivity, WiFi 6, and BT5.1 for efficient data transfer. With a plethora of ports and docking station expansion capabilities, it caters to the needs of various industries. It offers dual-battery endurance with a 56Wh + 14.4Wh setup, allowing hot-swapping of the larger battery. Boasting an IP65 ingress protection rating, it has also undergone rigorous testing in accordance with the MIL-STD-810H US military standard.

Get A Quote

Highlights

CPU

Intel core i5-1235U/i7-1255U

Operating system

Windows 11/10

Multiple Networking

Supports M.2 interface 5G/4G selection, high speed WIFI 6,BT5.1

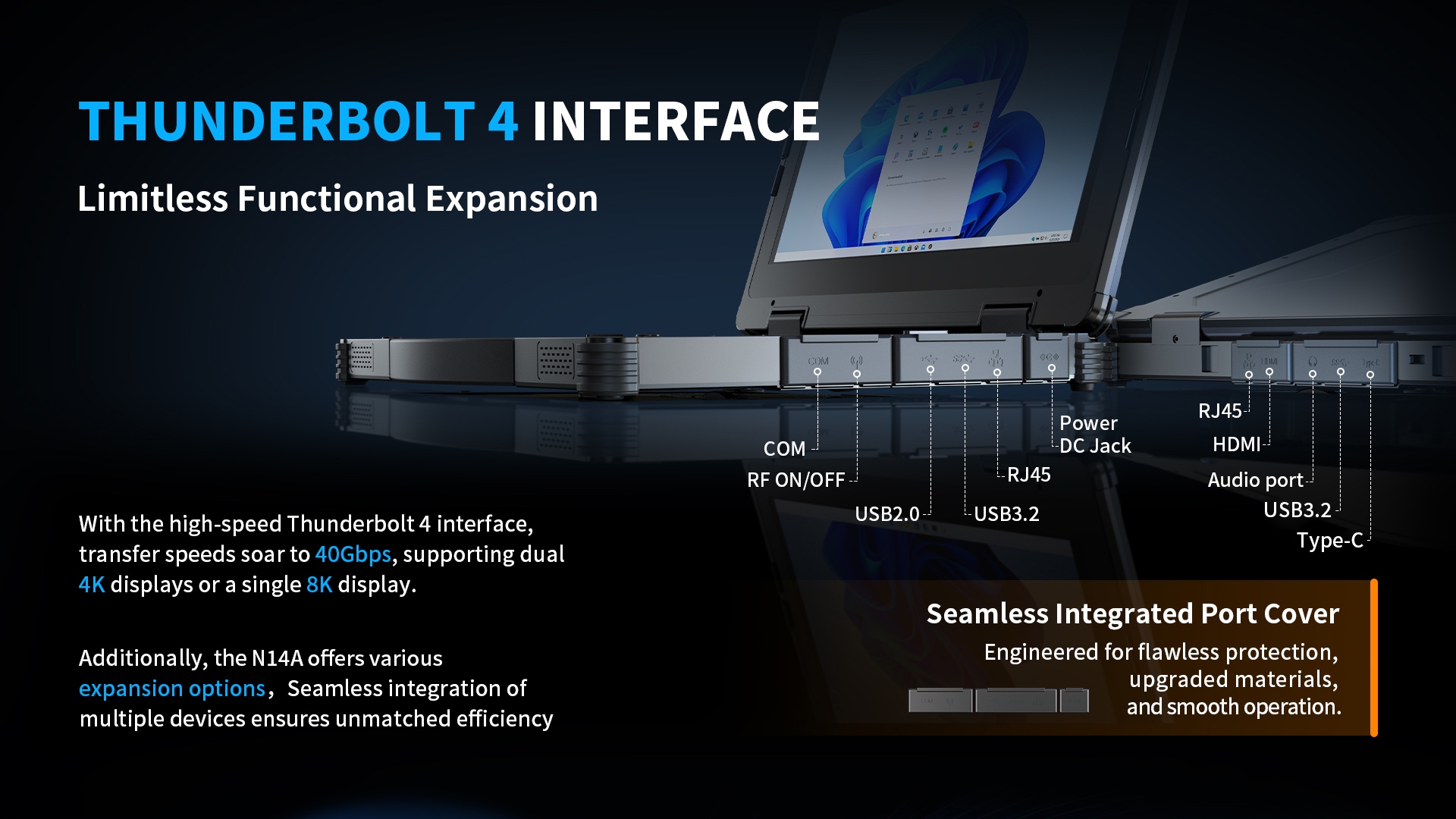

Thunderbolt 4 Interface

High-speed Thunderbolt 4 interface HDMI 2.0, USB, RJ45, RS232,etc. Seamless integration of multiple devices

High-Capacity Dual-Battery

56Wh + 14.4Wh dual battery Large battery is removable Switchable Modes for Versatility

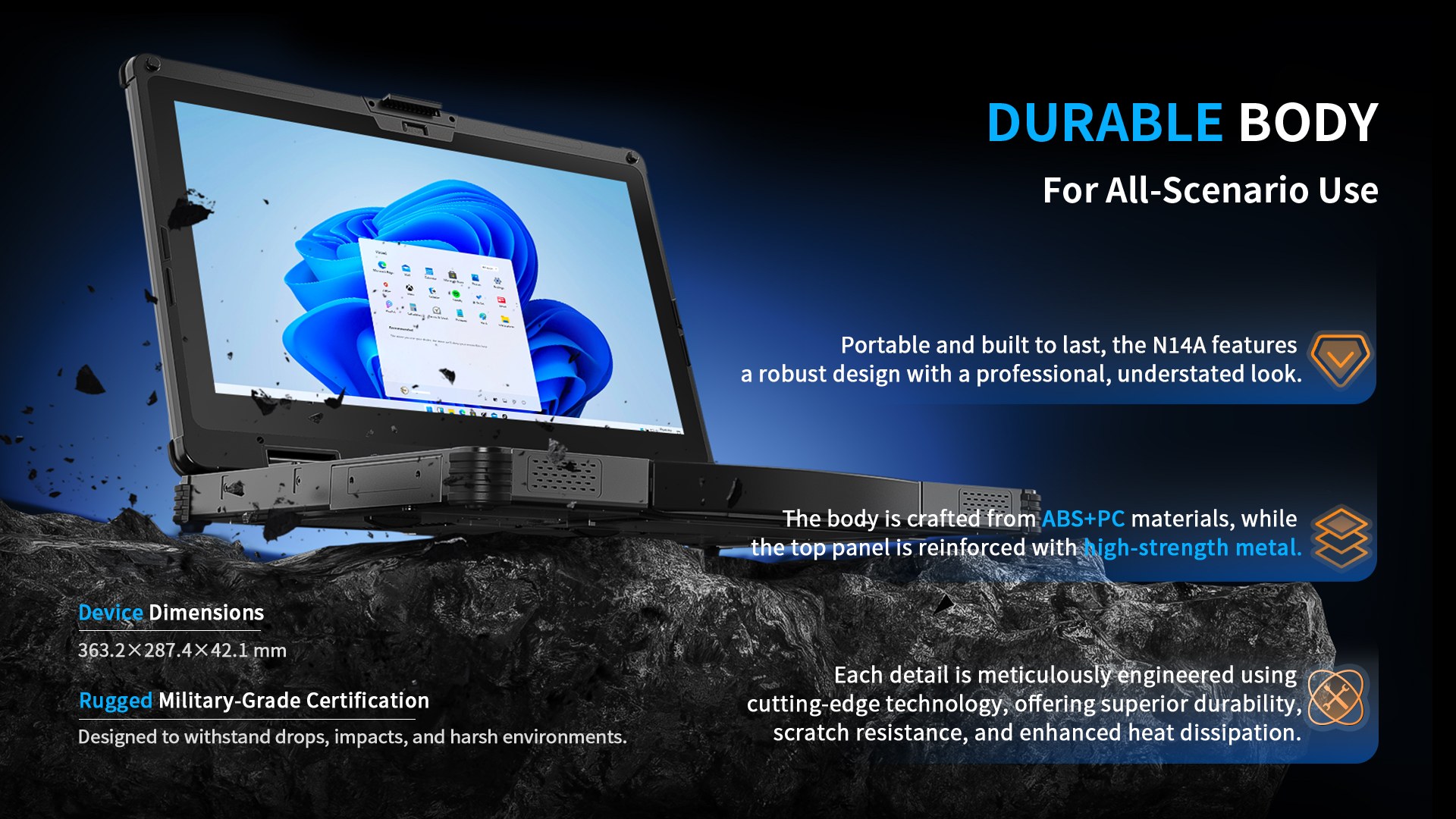

Durable Body For All-Scenario Use

he 14-inch fully laminated display Supports optional 10-point touch and glove touch IP65 & MIL-STD-810H Certified

Tech Specs (*Please be aware all technical data, specification and performance figures subject to change without notice.)

Appearance Performance Wireless Ruggedness Accessories

Dimensions

363.2*287.4*42.1mm

Weight

TBD

Product Color

Black

Display

Type: FHD

Resolution: 1920*1080

Brightness: 1000cd/㎡

Size: 14-inch 16:9

Touch Panel

Optional 10-Point Capacitive Screen, G+G, Corning Gorilla Glass; Hardness above 7H; Scratch-resistant; Supports glove touch

I/O Ports

USB3.2 *1, USB3.0 *1, USB2.0 *1

TYPE-C， Supports Thunderbolt 4

SIM *1，TF *1

∮3.5mm Standard Earphone Jack *1

RJ45 *2 (10M/100M/1000M adaptive)

RS232 *1

12PIN Pogo Pin

DC19V/3.78A ∮5.5mm power interface *1

Anti-theft Lock Slot *1

Right-side Cooling Vent *1

NFC

Optional

Keyboard

US Layout Keyboard with Backlight

Processor

Intel i5-1235U

Operating System

Windows 11 PRO

Memory+Storage

RAM：16GB （Optional: 32GB DDR5）

ROM：256GB SSD

Adapter

DC input 100-240VAC0.5A50/60Hz DC19V/3.78A 71.82W American Standard Optional: European Standard

Camera

Front 5.0MP

Battery

1300mah/11.1V (14.4WH)

4850mah/11.55V（56WH）

Fingerprint

Built in, ×1 SPI Fingerprint (Power-On Login)

WiFi

WIFI6

WAN

2G/3G/4G(Optional M.2 European standard)

5G Optional M.2

Bluetooth

BT5.1

GPS

Supports single GPS or single Glonass, default GPS

Certification

IP65

CE, UN3803, Optional FCC, CCC

MIL-STD-810H

Rugged Features

MIL-STD-810H: 1.2m drop resistance

Working temperature: -20 °C to 60 °C

Storage temperature: -30 °C to 70 °C

Humidity: 95% Non-Condensing

Standard

DC19V/3.78A adapter

Optional

Removable Battery

MDC14 Battery Quad-charging Dock
