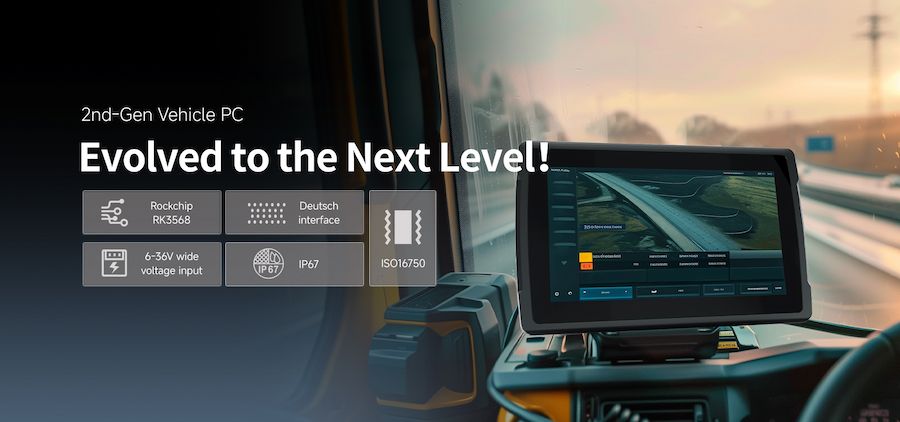

ONERugged brand introduces the 2nd-Gen Vehicle PC tablet V12R, a cutting-edge solution designed to enhance the efficiency and productivity of farming machinery. This advanced vehicle mount tablet combines robust performance with durable design, making it an ideal tool for the agricultural industry.

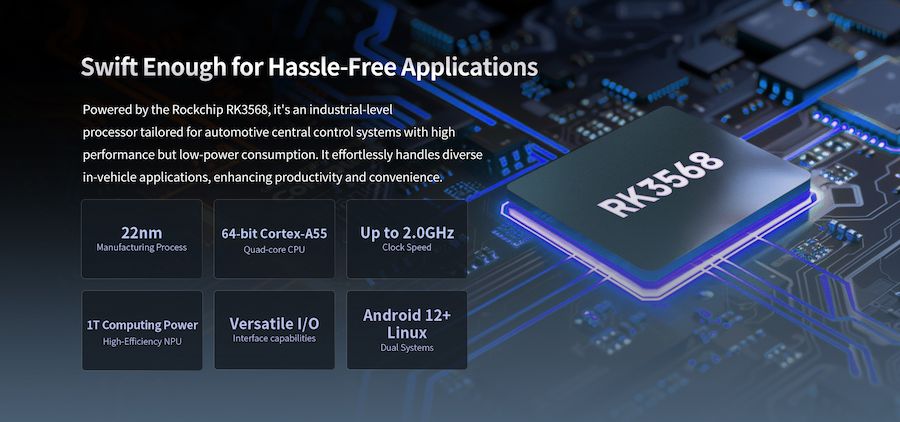

The V12R is powered by the Rockchip RK3568 processor, with an optional upgrade to the RK3568J. This industrial-level processor is tailored for automotive central control systems, offering high performance with low power consumption. With a 22nm manufacturing process, 64-bit Cortex-A55 quad-core CPU, and up to 2.0GHz clock speed, the V12R handles diverse in-vehicle applications with ease. The integrated high-efficiency NPU with 1T computing power further enhances its processing capabilities, while the dual operating systems (Android 12 and Linux) provide flexibility for various software requirements.

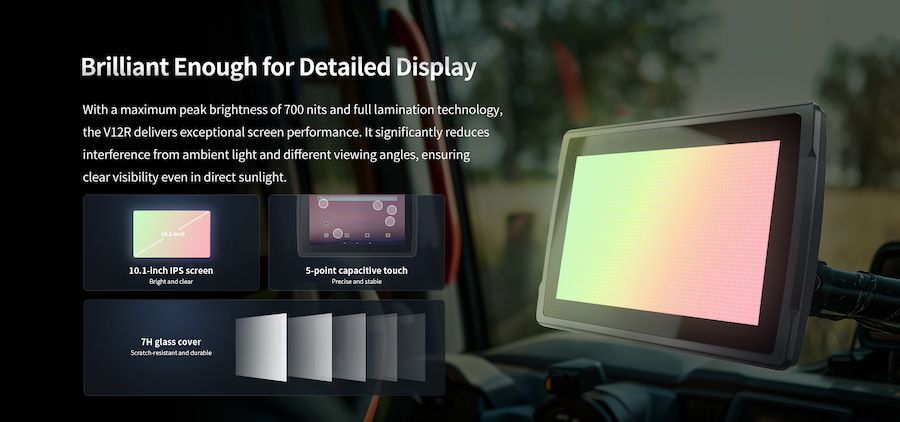

One of the standout features of the V12R is its 10.1-inch IPS screen, which provides brilliant clarity with a peak brightness of 700 nits. The full lamination technology significantly reduces interference from ambient light and different viewing angles, ensuring clear visibility even in direct sunlight. The screen’s 5-point capacitive touch and 7H glass cover offer precise and stable interaction, as well as scratch resistance and durability.
The V12R is designed to thrive in harsh environments, meeting automotive-grade standards with IP67 protection against dust and water, and compliance with ISO16750 road vehicle performance testing. It can operate in extreme temperatures ranging from -30°C to 70°C, with an over-temperature shutdown feature to safeguard the device. This rugged design ensures the V12R can withstand the challenges of agricultural fieldwork.

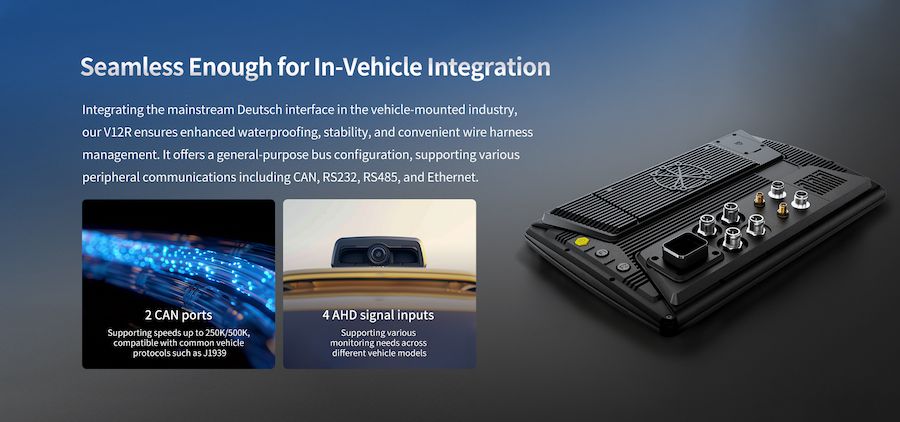

For seamless integration into farming machinery, the V12R incorporates the mainstream Deutsch interface, known for enhanced waterproofing, stability, and convenient wire harness management. It supports multiple peripheral communications through its versatile interface options, including CAN, RS232, RS485, and Ethernet. This flexibility makes it suitable for a wide range of agricultural applications, from monitoring and control systems to data collection and transmission.
The V12R’s wide voltage module supports an input range of 6V to 36V, accommodating sudden surges in current and meeting the power supply requirements of high-voltage agricultural machinery. The ACC function supports ignition detection with a delayed switch, ensuring reliable operation in various conditions.
In terms of communication, the V12R is equipped with standard Wi-Fi 5 and Bluetooth 5.0 modules, providing seamless roaming access points for uninterrupted network signals within different coverage areas. Optional 4G Ethernet communication and data radio communication modules are available for external mobile use and areas with poor network environments, ensuring continuous connectivity.

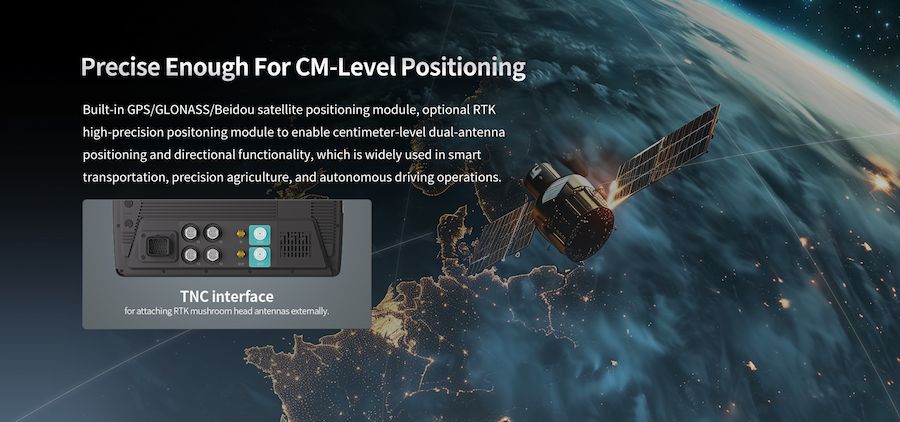

Precision is paramount in modern farming, and the V12R excels in this area with optional GPS/GLONASS/BeiDou satellite positioning and RTK high-precision positioning systems. These enable centimeter-level dual-antenna positioning and directional functionality, which are essential for smart transportation, precision agriculture, and autonomous driving operations.
The V12R is versatile enough to be used in a variety of in-vehicle scenarios, including construction vehicles like electric shovels, excavators, bulldozers, command vehicles, and tractors; agricultural machinery like rotary tillers, harvesters, and transplanters; commercial vehicles like logistics vehicles, hazardous materials transport vehicles, and buses; port transport vehicles like container trucks, reach stackers, yard cranes, and quay cranes; airport logistics support vehicles like tow trucks, deicing vehicles, shuttle buses, and fuel trucks; and factory transport vehicles like forklifts. This broad applicability makes it a valuable asset for the agricultural industry.
ONERugged stands out as a top-tier company with a strong commitment to quality and customer service. With a factory covering 5000m² and an annual production capacity exceeding 400K units, ONERugged offers high cost performance through strict control of supply chain and sales channels. The V12R’s industrial quality is validated by its compliance with IP67, MIL-STD-810H, ISO7637, and ISO16750 standards, ensuring reliable performance in any agricultural setting.
